SMW200A Vector Signal Generator
Internal baseband up to 2 GHz I/Q modulation bandwidth for 4th and 5th generation standards (5G, LTE Advanced and IEEE 802.11ac/ad); frequency range from 100 kHz to 3 GHz, 6 GHz, 12.75 GHz, 20 GHz, 31.8 GHz or 40 GHz; optional additional RF path (100 kHz to 3 GHz, 6 GHz, 12.75 GHz or 20 GHz); universal configuration: from single channel vector signal generator to multichannel MIMO receiver tester
SMF100A Microwave Signal Generator
Maximum frequency range from 100 kHz to 43.5 GHz; up to 170 GHz (using SMZ frequency multiplier); very low SSB phase noise, typically –120 dBc (condition: 10 GHz; 10 kHz carrier offset) Ultra-high output power, typically +25 dBm; optional pulse modulator for excellent data
SMA100B RF and Microwave Analog Signal Generator
Frequency range from 8 kHz to 3 GHz, 6 GHz, 12.75 GHz or 20 GHz; SSB phase noise: <-152 dBc (typical) at 1 GHz and <-132 dBc (typical) at 10 GHz, respectively Offset value of 20 kHz; wideband noise: <-162dBc (measured) at 10 GHz with an offset of 30 MHz; non-harmonic at 1 GHz is less than -110 dBc

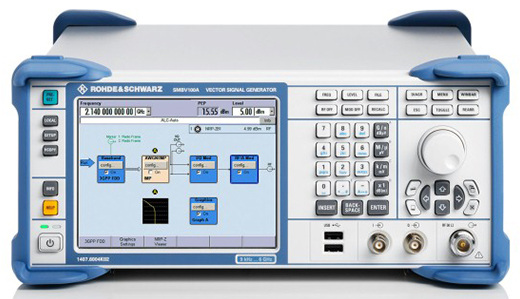

SMBV100A Vector Signal Generator
Frequency options from 9 kHz to 3.2 GHz/6 GHz; optional baseband generator with real-time encoder and arbitrary waveform generator for maximum flexibility; optional baseband generator (with ARB only) An effective alternative to cost savings; support for 3GPP LTE FDD and TDD, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution, TD-SCDMA, WLAN, WiMAX and all other important digital standards

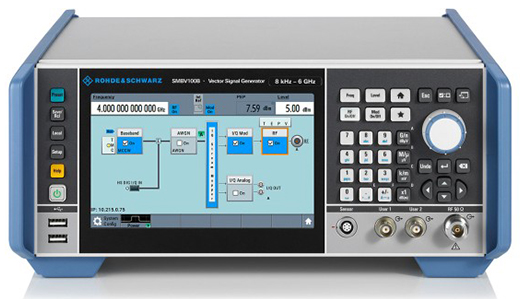

SMBV100B Vector Signal Generator
Frequency range from 8 kHz to 3 GHz or 6 GHz; ultra-high output power up to +34 dBm; 500 MHz modulation bandwidth with high accuracy; signal generation for all major digital communication standards including 5G NR, LTE and WLAN; GNSS simulation With GPS, Glonass, Galileo, BeiDou and QZSS / SBAS
