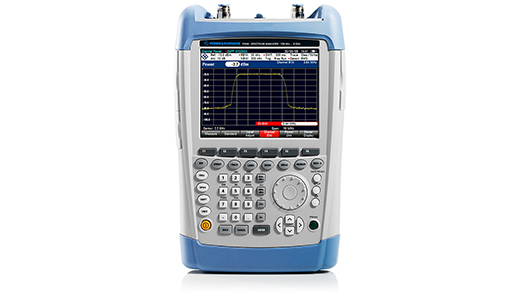

FSH Handheld Spectrum Analyzer
The FSH Handheld Spectrum Analyzer combines the functions of a spectrum analyzer, network analyzer, cable and antenna analyzer, interference capture analyzer, and power meter; 9 kHz to 20 GHz; excellent sensitivity when using a preamplifier –161 dBm (1 Hz); all-in-one analyzer: spectrum analyzer, network analyzer and CAT; internal tracking source, VSWR bridge, biaser; rugged waterproof housing for field applications
FSC Spectrum Analyzer
Frequency range from 9 kHz to 3 GHz or 6 GHz; resolution bandwidth from 10 Hz to 3 MHz; high sensitivity (< –141 dBm (1 Hz) with preamplifier option < –161 dBm (1 Hz)) High third-order intermodulation (> 10 dBm, typical value is 15 dBm); low measurement uncertainty (< 1 dB); internal tracking generator (model.13/.16); compact size; low power consumption (12 W )
FSL Spectrum Analyzer
A lightweight and compact spectrum analyzer for cost-conscious users who require high-end instrumentation. The analyzer is suitable for a wide range of applications in development, service and production. Frequency range from 9 kHz to 3 GHz, 6 GHz or 18 GHz; models with or without tracking generator; signal analysis bandwidth is 28 MHz; even in the microwave range, measurement uncertainty is low; general measurement applications, Such as spectrum; easy field upgrades with options
FPS Signal and Spectrum Analyzer
Frequency range up to 4/7/13.6/30/40GHz; up to 160MHz signal analysis bandwidth; 0.4dB level measurement uncertainty (up to 7GHz); GSM/EDGE (including EDGE Evolution), WCDMA/HSPA+, LTE, WLAN, Vector signal analysis measurement application; phase noise is –110dBc (1 Hz) at 10kHz frequency offset; +15dBm third-order cut-off point (TOI); 1Hz bandwidth, 1GHz, display average noise level (DANL) is –155dBm
FSV Signal and Spectrum Analyzer
Frequency range up to 4/7/13.6/30/40 GHz; up to 160 MHz signal analysis bandwidth; universal measurement application covering phase noise, noise figure, vector signal analysis, analog demodulation, EMI diagnostics; support for LTE (including LTE Advanced ), WLAN (including IEEE 802.11ac), WCDMA/HSPA+, TD-SCDMA, GSM/EDGE, CDMA2000/1xEV-DO, Bluetooth wireless measurement applications; in the case of harmonic mixers, frequencies up to 500 GHz
FSP Spectrum Analyzer
Frequency range 9 kHz to 3 GHz, 7 GHz, 13 GHz, 30 GHz and 40 GHz; resolution bandwidth from 1 Hz to 10 MHz; average noise level displayed - 155 dBm (1 Hz); phase noise - 113 dB (1 Hz), 10 kHz ; measurement functions for TOI, MC ACP(R), OBW, CCDF, APD, etc.; measurement applications for cell standards and general purposes, eg phase noise, noise figure, etc.
