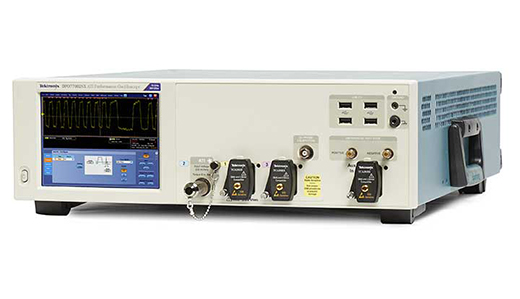

DPO70000SX ATI Performance Oscilloscope
The DPO70000SX ATI High Performance Oscilloscope provides accurate high-speed signal behavior capture to prove, verify, and characterize your next-generation design. Capture signals up to 70 GHz with low noise and high fidelity to ensure accurate measurement of the true characteristics of your signal
RTO2000 Oscilloscope
Bandwidth: 600 MHz to 6 GHz; maximum sampling rate: 20 Gsample/s; maximum memory depth: 2 Gsample; maximum 16-bit vertical resolution; MSO: 16 optional digital channels, upgradeable

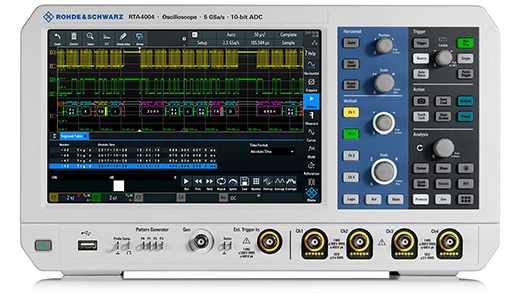

RTA4000 Oscilloscope
Bandwidth: 200 MHz to 1 GHz; sampling rate: maximum 5 Gsample/s; memory depth: maximum 1 Gsample; ADC resolution: 10 bits; display: 10.1" capacitive touch screen

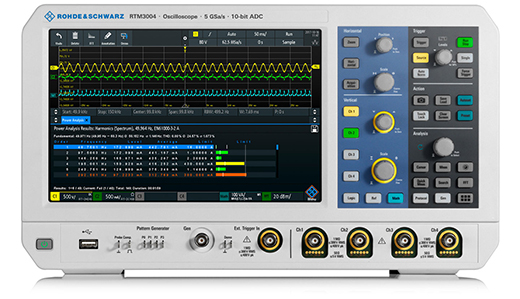

RTM3000 Oscilloscope
Bandwidth: 100 MHz to 1 GHz; Sample rate: up to 5 Gsample/s; Memory Depth: Max 80 Msample; ADC Resolution: 10 bits; Display: 10.1" Capacitive Touch Screen

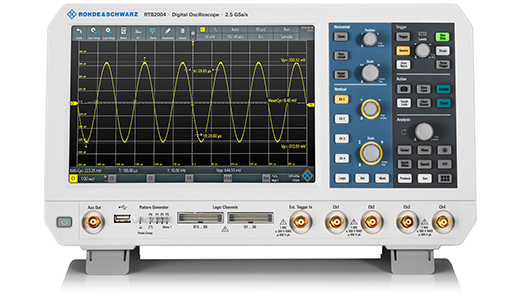

RTB2000 Oscilloscope
The combination of 10-bit ADC, 10 Msample memory and 10.1" touch screen and intelligent operation concept is ideal for troubleshooting in university labs, embedded design development, and production and maintenance. Bandwidth: 70 MHz to 300 MHz; Sampling Rate: up to 2.5 Gsample/s; storage depth: up to 20 Msample

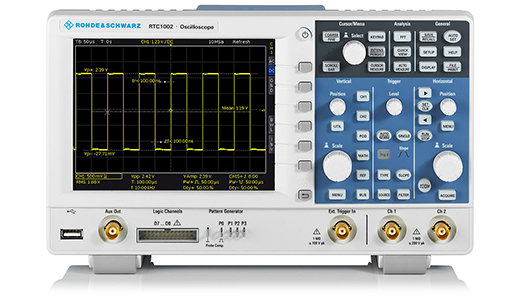

RTC1000 Oscilloscope
An all-in-one instrument that combines the functions of an oscilloscope, logic analyzer, protocol analyzer, spectrum analyzer, pattern generator, function generator, digital voltmeter, and component tester. Bandwidth: 50 MHz to 300 MHz; maximum sampling rate: 2 Gsample/s; maximum memory depth: 2 Msample; MSO: 8 optional digital channels, upgradeable; pattern generator: 4-bit pattern, data rate Up to 50 Mbit/s
