N9020B MXA Signal Analyzer
10Hz to 50GHz; fast adapt to the evolving test requirements of wireless devices; shorten test time by hardware accelerated power measurement, display update rate fast, and have cursor peak search and fast scan function; X series application software provides one-button measurement, significantly simplified Testing; full-band real-time spectrum analysis captures sporadic or transient signals
N9030B PXA Signal Analyzer
2Hz to 50GHz; with excellent to superior measurement options, you can accelerate innovation in demanding applications; expand the frequency to 110GHz with Keysight's intelligent mixers; use real-time spectrum analysis to capture transient signals or Intermittent signals; X-Series applications simplify testing for specific applications; 89600 VSA software for deeper troubleshooting
N9040B UXA Signal Analyzer
3Hz to 50GHz; with excellent phase noise performance, 78dBc spurious-free dynamic range and 510MHz bandwidth, you can better measure the spectral purity of your design; with the Keysight Smart Mixer you can extend the RF input frequency to 110GHz, using Other manufacturers' mixers can be extended to THz levels; full-band real-time spectrum analysis captures intermittent signals; improved display average noise level (DANL) low-noise path helps capture lower-level spurious signals

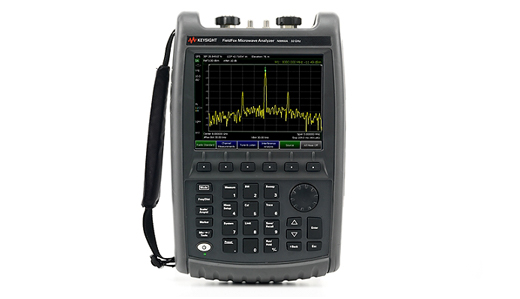

N9962A FieldFox Handheld microwave spectrum analyzer，50 GHz
Frequency range: 9 kHz to 50 GHz;Add options such as tracking generator, interference analyzer and built-in power meter to expand the functions of the analyzer;Accurate spectrum analyzer measurement (± 0.5 dB) without preheating;Intuitive spectrum display and recording function can easily locate interference signals;The average power and pulse power can be easily measured by combining USB power sensor and pulse parameters can be measured by combining time gating function;Lightweight handheld microwave spectrum analyzer weighing only 7.0 lbs (3.2kg)
N9961A FieldFox Handheld microwave spectrum analyzer，44 GHz
Frequency range: 5 kHz to 44 GHz;Add options such as tracking generator, interference analyzer and built-in power meter to expand the functions of the analyzer;Accurate spectrum analyzer measurement (± 0.5 dB) without preheating;Intuitive spectrum display and recording function can easily locate interference signals;The average power and pulse power can be easily measured by combining USB power sensor and pulse parameters can be measured by combining time gating function;Lightweight handheld microwave spectrum analyzer weighing only 7.0 lbs (3.2kg)
N9960A FieldFox Handheld microwave spectrum analyzer，32 GHz
Frequency range: 5 kHz to 32 GHz;Optional tracking generator, interference analyzer, built-in power meter and other tools can expand the functions of the analyzer;Accurate spectrum analyzer measurement without preheating (± 0.5 dB);Intuitive spectrum display and recording function can locate interference signal;It is easy to measure average power and pulse power with USB power sensor, and time gating function is suitable for pulse measurement;Compact microwave handheld spectrum analyzer, weighing only 7.1 lbs (3.2 kg)
