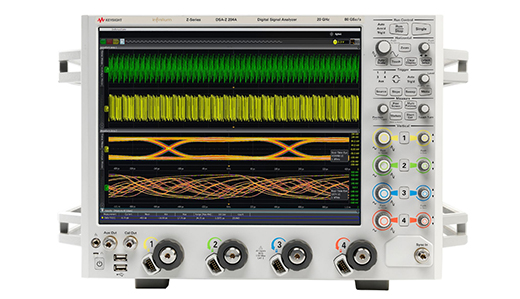

DSAZ204A Infiniium Oscilloscope
20 GHz real-time bandwidth (upgradable to 63 GHz); 4-channel 80 GSa/s sampling rate; up to 2 Gpts of deep memory (100 Mpts per channel as standard) for more data acquisition; excellent noise reduction with an oscilloscope Jitter for true signal performance

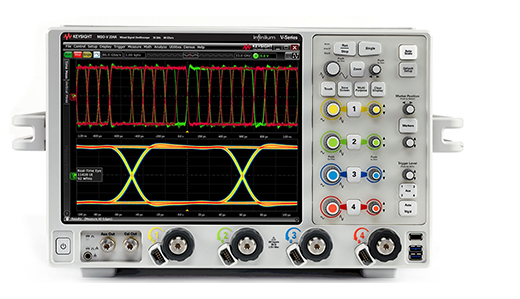

MSOV334A Mixed Signal Scope
33 GHz analog bandwidth; 4 analog channels and 16 digital channels; up to 80 GSa/s sample rate and 2 Gpts acquisition memory for more complete signal trace capture; lower noise floor (50 mV/div time) Excellent signal integrity for 2.09 mVrms) and measurement background jitter (100 fs); effective bit count (EnOB) over 5.5 and spurious-free dynamic range (SFDR) over 50 dBc ensure excellent measurement accuracy

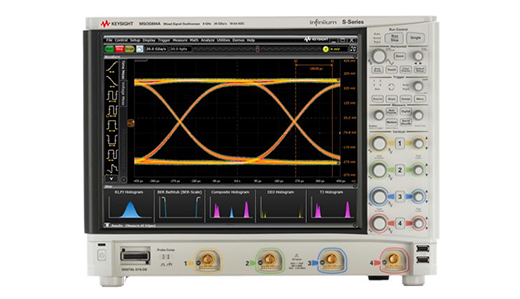

MSOS804A Oscilloscope
8 GHz bandwidth, 4 analog channels and 16 digital channels; up to 20 GSa/s sampling rate and 50 Mpts memory per channel as standard to capture longer signal traces; 6.4-bit system ENOB and 10-bit mode Digital Converter (ADC) for superior signal integrity; 15" multi-touch capacitive touch screen makes the oscilloscope easier to use, SSDs for faster startup and improved reliability; extensive protocol, compliance testing and analysis software Can improve your testing
MSOX6004A Mixed Signal Scope
1-6GHz, 4 analog channels and 16 digital channels; with zone triggering and up to 450,000 waveforms per second update rate, allowing you to easily view and isolate signals with a 12.1-inch multi-touch capacitive screen; 1GHz bandwidth, 1mV The noise floor is only 115Vrms for a more accurate measurement; the 6-inch thick portable package allows you to make efficient measurements anywhere

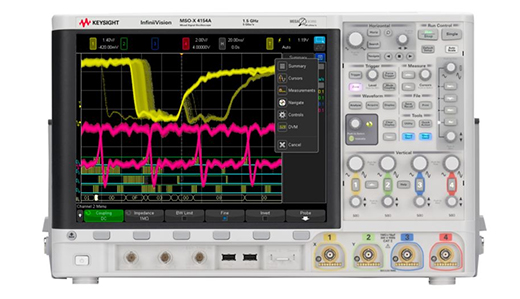

MSOX4154A Mixed Signal Scope
1.5 GHz, 4 analog channels and 16 digital channels; the 12.1-inch capacitive touch screen allows you to easily view signals; the unique area touch trigger technology allows you to easily isolate signals in seconds; 4 Mpts memory and standard segmentation Memory can capture more data; up to 1,000,000 waveforms per second update rate allows you to see more signal details

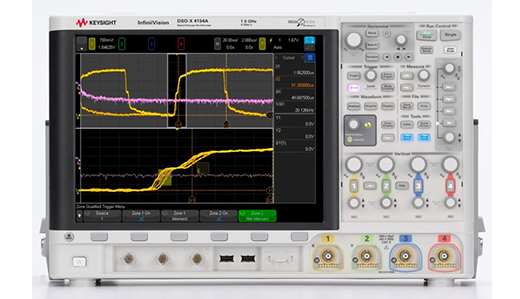

DSOX4154A Oscilloscope
1.5 GHz, 4 analog channels; 12.1-inch capacitive touch screen allows you to easily view signals; exclusive area touch trigger technology allows you to easily isolate signals in seconds; 4 Mpts memory and standard segment memory capture more Data; up to 1,000,000 waveforms per second update rate allows you to view the most detailed signal details
