PNA-X Microwave Network Analyzer
The most versatile and flexible single-shot microwave test engine for measuring active devices
N5242B 10MHz-26.5GHz 2,4ports
N5244B 10MHz-43.5GHz 2,4ports
N5245B 10MHz-50GHz 2,4ports
N5247B 10MHz-67GHz 2,4ports
Combined with millimeter wave module, expandable to 1.1THz
PNA-L Microwave Network Analyzer
Universal network analyzer
N5232B 300KHz-20GHz 2,4ports
N5234B 10MHz-43.5GHz 2port
N5235B 10MHz-50GHz 2port
PNA Microwave Network Analyzer
The highest performing network analyzer for your budget
N5222B 10MHz-26.5GHz 2,4ports
N5224B 10MHz-43.5GHz 2,4ports
N5225B 10MHz-50GHz 2,4ports
N5227B 10MHz-67GHz 2,4ports
Combined with millimeter wave module, expandable to 1.1THz

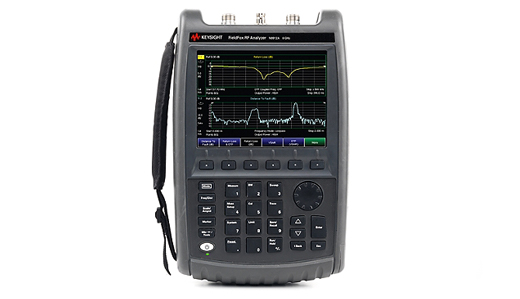

N9912A FieldFox Handheld RF analyzer，4 GHz 和 6 GHz
Cable and antenna analyzer (CAT) and vector network analyzer (VNA): 2 MHz to 4 / 6 GHz；Spectrum analyzer (SA): 100 kHz to 4 / 6 GHz；Portable and functional handheld RF analyzer: standard models include cable and antenna analysis；Add options such as t / R VNA, spectrum analyzer and built-in power meter to expand functions；The function of measuring RL and DTF simultaneously in a single scan can save time；Quickcal can be calibrated on site；Combined with USB power sensor, average power and pulse power can be easily measured；6.2 pounds only

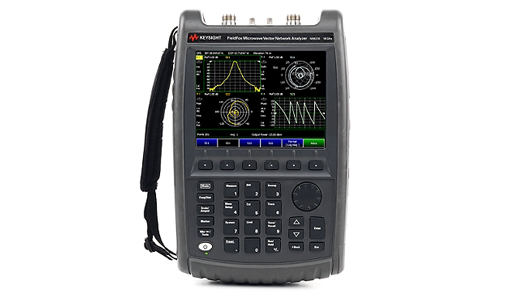

N9928A FieldFox Handheld microwave spectrum analyzer,26.5 GHz
26.5 GHz maximum frequency;Use full-featured handheld T / R VNA analyzer;Optional 2-port VNA, time domain, vector voltmeter, cable and antenna analyzer can improve measurement flexibility;Time can be saved by measuring all 4 S parameters at the same time through a single connection;Quickcal, full dual port unknown pass through calibration and TRL can perform accurate tests;Easy measurement of average power and pulse power with USB power sensor;Small, hand-held vector network analyzer (VNA) weighs just 6.6 pounds (3.0 kg)

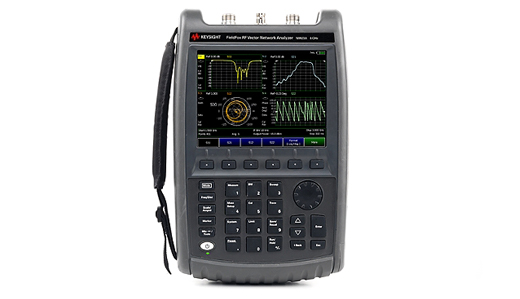

N9927A FieldFox Handheld microwave spectrum analyzer，18 GHz
18 GHz maximum frequency;Carry and use a full-featured handheld T / R VNA analyzer;Optional 2-port VNA, time domain, vector voltmeter, cable and antenna analyzer can improve measurement flexibility;Time can be saved by measuring all 4 S parameters at the same time through a single connection;Quickcal, full dual port unknown pass through calibration and TRL can perform accurate tests;Easy measurement of average power and pulse power with USB power sensor;Small hand-held
